Description

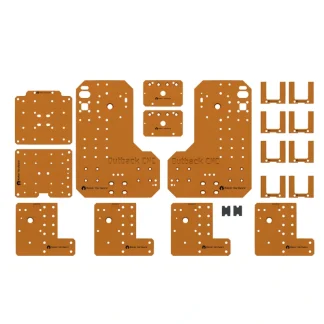

This is a Set of 7 plates and 1 spacer block that is used on the OutBack CNC Machine. All plates are manufactured from 6063-T5 Aluminium.
Plates on the X and Y-Axis were designed to suit our HGH15CA Bearings, while the Z-Axis Plate was designed to match our MGN15C Bearings for increased machine rigidity. The plates have been precision machined flat to achieve high tolerances and smoothness during movement. This plate set is proudly Australian designed and the colour scheme was chosen to represent the toughness and spirit of the Australian OutBack.
Specifications:
- Material: 6063 T-5 Aluminium
- Finish: Powder Coated Finish
- Colour: Australian OutBack
What is Included:
| Item | Description | SKU | Qty. |
| 1 | OutBack CNC X-Axis Plate – V1 | PLATE-OTBV1-X-P051 | 1 |
| 2 | OutBack CNC X-Axis Drive Nut Spacer – V1 | PLATE-OTBV1-X-SPACER-P052 | 2 |
| 3 | OutBack CNC Y-Axis End Plate – V1 | PLATE-OTBV1-Y-END-P053 | 4 |
| 4 | OutBack CNC Y-Axis (Left) Plate – V1 | PLATE-OTBV1-Y-L-P054 | 1 |
| 5 | OutBack CNC Y-Axis (Right) Plate – V1 | PLATE-OTBV1-Y-R-P055 | 1 |
| 6 | OutBack CNC Z-Axis Plate – V1 | PLATE-OTBV1-Z-P0561 | 1 |
| 7 | OutBack CNC Z-Axis End Plate – V1 | PLATE-OTBV1-Z-END-P057 | 2 |
Notes:
Please note that this listing is for the OutBack Plate Set ONLY. If you would like a full machine, please click HERE.
